Description
PRODUCT BENEFITS
PRECISION
Accuracy
+/- 1.0% of reading plus +/- 0.2% of full-scale – Air, Nitrogen
+/- 1.5% of reading plus +/- 0.5% of full-scale – All other gases
Repeatability +/- 0.2% of full scale
Direct measurement of gas mass flow / No volume to mass calculations
DigiSense
™
robust sensor design
Welded, 316 SS sensor

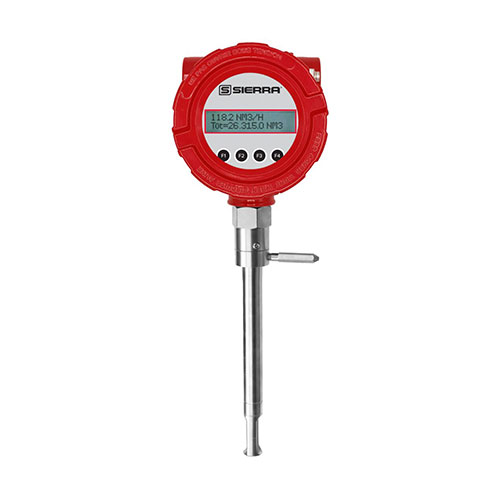

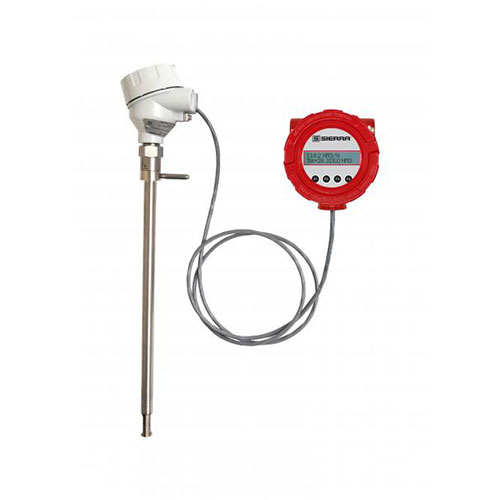

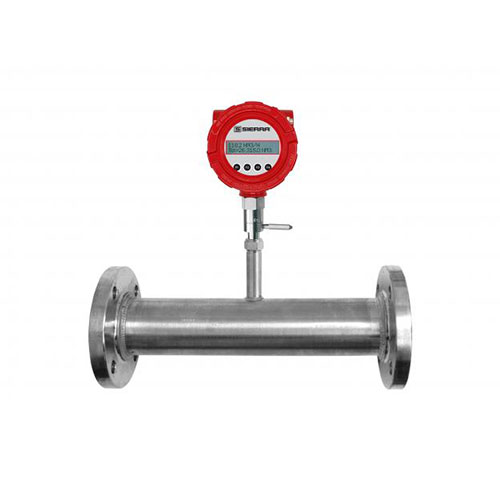

Insertion, Inline, and Remote styles
Rotatable enclosure: allows ±180 degree display orientation
AC and DC
Velocity Range: 0 to 45,000 sfpm
Wide measurement range: up to 1000:1 turndown; 100:1 typical
Negligible pressure drop
Two 4-20mA outputs for flow rate and temperature
Measure gas flow rate in scfm, mcfd, kg/h, and more
Low-end sensitivity (0-500 sfpm) for leak detection and other low-flow applications
Communication options: HART or Modbus RTU (RS485)
FM/FMc, ATEX, IECEx, and UKEX approvals
NEMA 4X and CE Mark
FIELD FLEXIBILITY
Microprocessor based, field programmable electronics
Menu of field selectable gas compositions with Gas-Mix
™
Free TM500-View
™
software available / USB port connects to a PC
Calibration Validation with TM-Cal
™
NIST-traceable calibration
